The HyperX Audio Mixer is built for streamers and creators who want fine-tuned control of their audio sources. It’s a simple solution for mixing up to three audio sources: an XLR microphone input, a 3.5mm microphone input, and a stereo 3.5mm line input. This compact USB 3-track mixer features simple, intuitive controls so you won’t bring your recording to an abrupt halt as you attempt to figure out a bunch of frustrating buttons. With 3 faders and individual volume knobs for line and headphone outputs, you can easily find your perfect balance of mic, voice chat, and game audio. With support for 24-bit/96kHz recording and support for the HyperX ProCast and most other XLR mics, you’ll get professional-quality sound from your recordings.
The HyperX Audio Mixer gives you the ability to mix up to three audio sources: an XLR mic, 3.5mm mic, and stereo 3.5mm line input. Manage them all with intuitive controls that won't interrupt the flow of your content.
Capture accurate, low-noise recordings with the 24-bit/96kHz studio-level bit depth and sampling rate.
XLR connection supports 48V phantom power for the HyperX ProCast and other active microphones. HyperX XLR cable included.
No software or installation required. Just connect your inputs and the USB cable, and you’re good to go!
The sleek, compact design of the HyperX Audio Mixer was built with streamers and content creators in mind. Get massive functionality with a small desktop footprint.
With individual level faders for each of your inputs, 2 volume knobs to regulate line and headphone outputs, and mute buttons, all the control you need is easy to understand, and right at your fingertips.
Spec Sheet |
|
| HyperX Audio Mixer - Professional XLR Interface | Download ProductSheet (PDF) |
Connectivity and Communications |
|
| USB specification | USB 2.0 (high speed); USB connection: USB-C; USB audio class: UAC 2.0 |
| USB power consumption | 5v, 345mA |
| USB audio format | Line input(s) - Headphone output(s) - Line output(s): 1x 3.5mm |
| Connection type | XLR Microphone Input / ¼” [6.35mm] TRS Microphone Input: Balanced, mono; 3.5mm Microphone Input: Unbalanced, mono. |
| Ports | 3 USB 2.0 Type-C®; 2 USB 2.0 Type-C®; 1 USB 2.0 Type-C®; 1 headphone/microphone combo; 1 3.5 mm headphone/microphone combo; 1 3.5 mm headset jack; 1 3.5 mm audio jack; 1 stereo headphone/microphone combo jack; 1 combo audio jack; 1 audio-in; 1 audio-in/out; 1 audio-out; 1 line in; 1 line out |
Multimedia and Input Devices |
|
| Cable type | USB-C to USB-A |
| Noise (RMS) (headphone) | 3.5mm Line Input: ≤-88dBFS (at 0dB Gain, A-weighted); 3.5mm Headphone Output: ≤-91dV (A-weighted); 3.5mm Line Output: ≤-95dV (A-weighted). |
| Microphone type | Microphone input(s): 1x XLR / ¼” TRS combo jack, 1x 3.5mm; XLR Microphone Input Type: Balanced, mono; ¼” [6.35mm] TRS Microphone Input: Balanced, mono; 3.5mm Microphone Input; Unbalanced, mono. |
| Microphone dynamic range | XLR Microphone Input: ≥88dB (at 0dB Gain, A-weighted); ¼” [6.35mm] TRS Microphone Input: ≥88dB (at 0dB Gain, A-weighted); 3.5mm Microphone Input: ≥91dB (at 0dB Gain, A-weighted); 3.5mm Line Input: ≥88dB (at 0dB Gain, A-weighted). |
| Media control | Input gain faders: XLR / ¼” TRS microphone, 3.5mm microphone, 3.5mm line input; Input mute buttons: XLR / ¼” TRS microphone, 3.5mm microphone, 3.5mm line input; Output volume knobs: headphone, line output; Output mute buttons: headphone, line output; 48V phantom power button. |
| Maximum input sound level | 1Vrms |
| Frequency response (headphone) | 20Hz - 20kHz |
| Noise (RMS) (microphone) | XLR Microphone Input / ¼” [6.35mm] TRS Microphone Input: ≤-88dBFS (at 0dB Gain, A-weighted); 3.5mm Microphone Input: ≤-91dBFS (at 0dB Gain, A-weighted). |
| Bit-depth | 24-bit, 16-bit |
| Audio | 1x XLR / ¼” TRS combo jack, 1x 3.5mm |
| Audio controls | Output volume knobs: headphone, line output; Output mute buttons: headphone, line output; 48V phantom power button. |
| Audio connection | Unbalanced, stereo; Gain range: -8dB - 36dB. |
| Output impedance | 32 Ω - 600 Ω |
| Passive attenuation device (PAD) | 3.5mm Headphone Output: -70dB (at 1kHz, RL=32 Ω); 3.5mm Line Output: -100dB (at 1kHz, RL=4.7 kΩ) |
| Phantom power requirements | 48V/6.8kΩ/10mA |
| Sampling rates | 96kHz, 48kHz, 44.1kHz |
| Boom Mic Sensitivity | XLR Microphone Input / ¼” [6.35mm] TRS Microphone Input: 1 - 50dB; 3.5mm Microphone Input: -12dB - 34dB. |
| Sensitivity (microphone) | 2.7V, 2.2 kΩ, 500uA |
| Signal-to-noise ratio | ≥95dB (at 1kHz/0dBFS, A-weighted) |
| Total harmonic distortion | XLR Microphone Input: < 1% (at 1kHz/0dB Gain); ¼” [6.35mm] TRS Microphone Input: < 1% (at 1kHz/0dB Gain); 3.5mm Microphone Input: < 1% (at 1kHz/0dB Gain); 3.5mm Line Input: < 1% (at 1kHz/0dB Gain); 3.5mm Headphone Output: < 1% (at 1kHz/0dBFS, A-weighted); 3.5mm Line Output: < 1% (at 1kHz/0dBFS). |
Weights |
|
| Weight | Weight (Mixer): 486g; Weight (XLR cable): 187g; Weight (USB cable): 45g; Weight (3.5mm audio cable): 21g. |
Appearance |
|
| Color | Black |
Battery and Power |
|
| Power consumption | Power supply: 5V, 500mA (USB) |
| Impedance | XLR Microphone Input: 6.8 kΩ; ¼” [6.35mm] TRS Microphone Input: 6.8 kΩ; 3.5mm Microphone Input: 2.2 kΩ; 3.5mm Line Input: 14 kΩ; 3.5mm Headphone Output: 32 Ω - 600 Ω; 3.5mm Line Output: 4.7 kΩ. |
| Power output maximum | ≥22mW |
Warranty |
|
| Manufacturer Warranty | 2 years |
Drives and Storage Specifications |
|
| Number of controllers included | 5 |
Box contents |
|

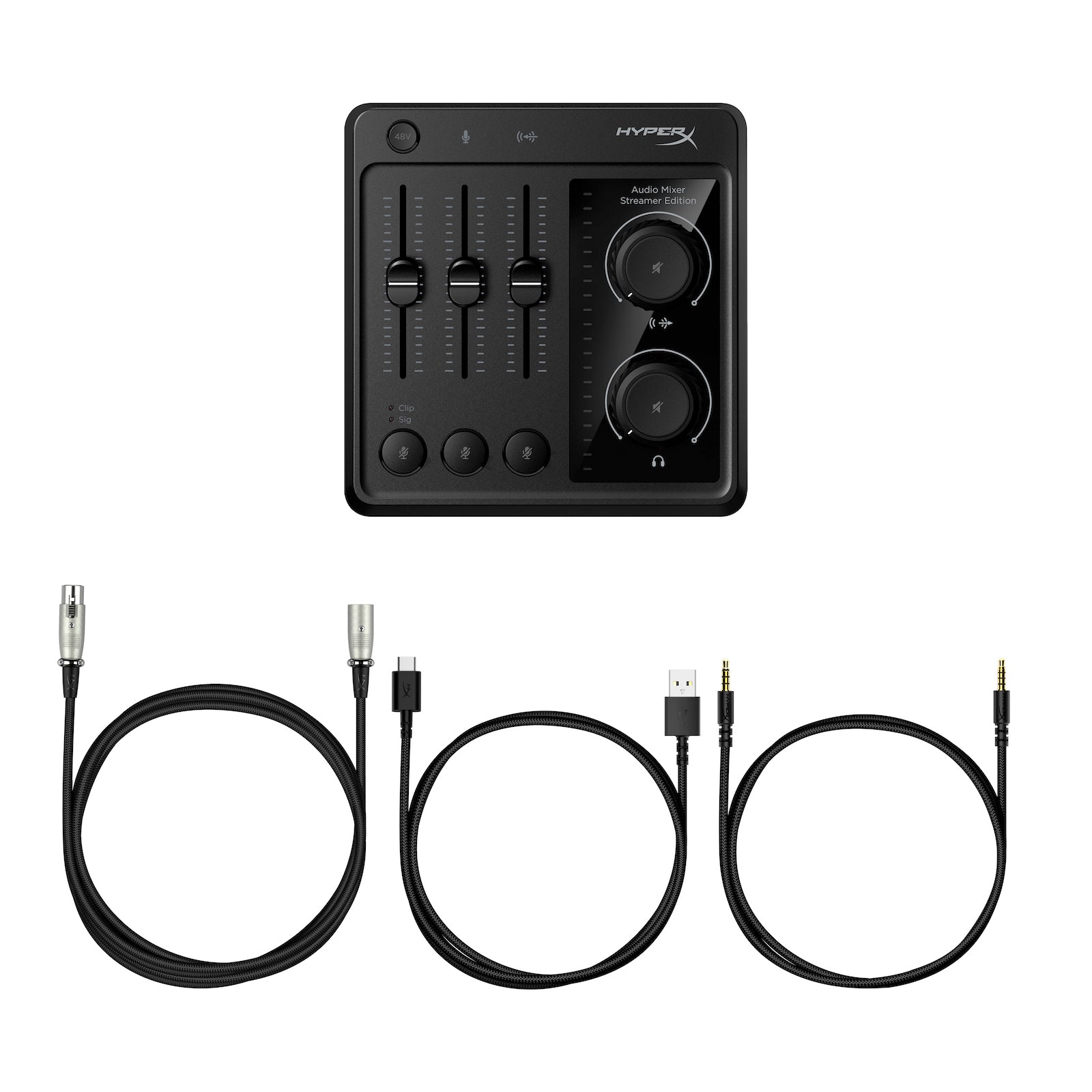

| What's in the box | Audio Mixer, XLR Cable, USB-C to USB-A Cable, 3.5mm Cable |
